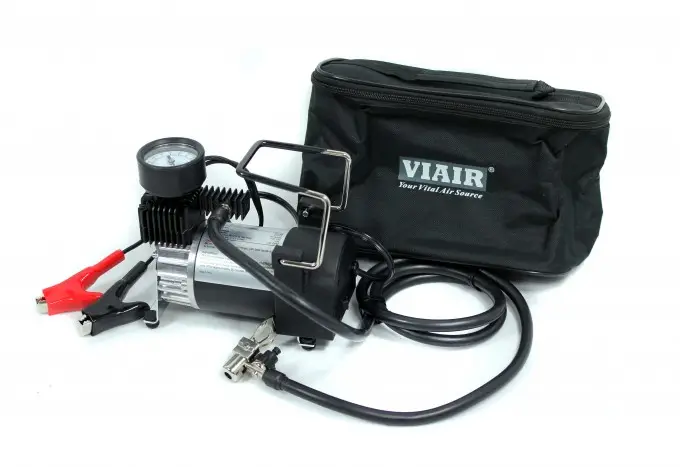

Viair 90P Portable Air Compressor sats (120 PSI), w/ Quick Release Tyre ventil Connector
Portable Air Ride Solutions, Ultimate Air Ride Parts
90P is a small but powerful portable compressor sats that is capable of inflating up to 31-inch tires by simply clamping the power leads to your battery, connecting the tire chuck to the ventil stem and turning the unit on.
Tyre pressure can be checked using the gauge mounted on top of the unit.
FEATURES
– Heavy Duty Steel Stand with Vibration Isolators
– 120 PSI Pressure Gauge with Rubber Boot
– Tire Chuck with Built-in Bleeder ventil
– 30-amp Inline Fuse Holder
– Dual Battery Clamps
– Deluxe Carry Bag
– 3 pc. Inflation Tips sats
–
–
–
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 30 min. @ 30 PSI
– Max. Working Pressure: 120 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP54
– Dimensions: 6.8″L x 3.7″W x 6.5″H
– Net Weight: 5.75 lbs.
– Power Cord Length: 12 ft.
– Air Hose Length: 5 ft.
PERFORMANCE DATA
PSICFMABARLPMA
01.2115034.315
101.19161.032.916
201.13172.030.218
301.06183.027.119
400.98194.024.420
500.92205.022.221
600.85206.019.722
700.80217.017.823
800.73218.015.721
900.6822
1000.6423
1100.5822
1200.5421
* Supply Voltage: 13.8 Volts
FILL RATES
31″ X 10.5″FILL RATE
0 to 30 PSI5 min. 00 sec. (± 10 sec.)
15 to 30 PSI2 min. 35 sec. (± 05 sec.)
Product Code: 30010111
OE Code:
